Description
Yoke Type Disc Safety Clutch
180mm (7″)
1 3/8″ x 6 Splines

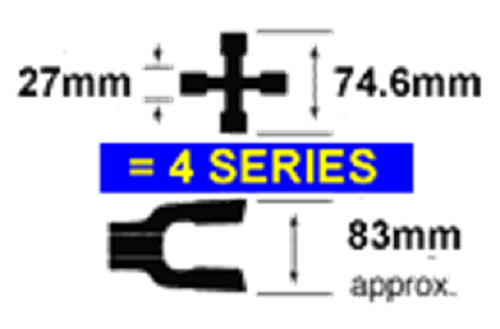

Shaft Series: 4 Series, 74.6mm x 27mm x 83mm (approx.)
Torque: 467NM (340 ft-lb)
HP/kW @540rpm: 35HP (26kW)
HP/kW @1000rpm: 56HP (42kW)
@Spring Length: 33mm (1.3″)
No. of Plates: 2
1 3/8″ x 6 Splines
Shaft Series: 4 Series, 74.6mm x 27mm x 83mm (approx.)
Torque: 467NM (340 ft-lb)
HP/kW @540rpm: 35HP (26kW)
HP/kW @1000rpm: 56HP (42kW)
@Spring Length: 33mm (1.3″)
No. of Plates: 2
Picture is for illustration purposes only
